Commercial Elevator

Built for offices, shopping malls, hotels, and commercial buildings, Commercial Elevators offer reliable performance, high efficiency, and seamless passenger movement.

Powering Efficient Movement Across Every Floor

Commercial Elevator Manufacturer

As a leading commercial lift manufacturer in Ahmedabad, TROGON ELEVATOR specializes in designing and producing high-quality commercial lifts. Our elevators, including passenger elevator, platform elevator, and freight elevator, are engineered to provide optimal performance and safety, investing confidence in their reliability for your various commercial needs.

At TROGON ELEVATOR, we lead in innovation and energy efficiency. Our solutions not only enhance vertical transportation in your buildings but also ensure that you are investing in the future. With a commitment to exceptional engineering and customer service, we provide customized lift solutions designed to your specific requirements.

Find out the perfect blend of reliability and elegance with our state-of-the-art elevators, designed to elevate your commercial spaces seamlessly.

0 +

Years Experienced

0 +

Specialist Doctor

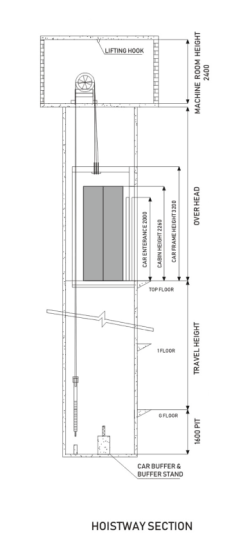

MR Commercial elevator specification

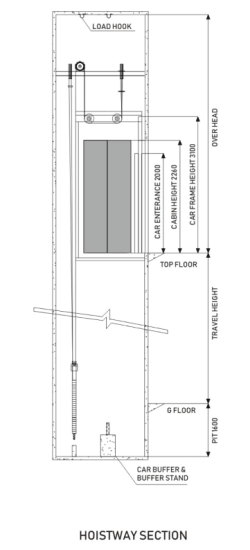

MRL Commercial Elevator specification

The Machine Roomless Elevator is the result of technological advancement that allow a significant reduction in the size of the electric motors used with traction equipment.

The Machine Roomless Elevators save construction space to a large extent.

Such elevators have become more and more popular because they run at low noise, are energy saving, easily maintainable and make the building look more aesthetically pleasing.

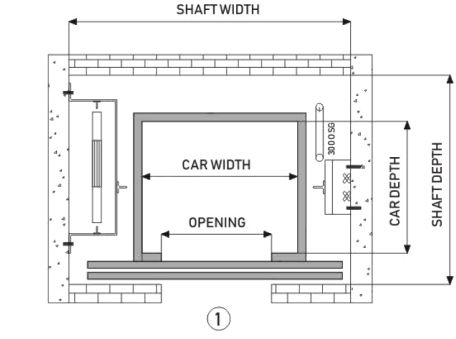

MR Technical specification center opening

CAPACTY	CARSIZE		SHAFT SIZE		OPENING	PIT				OVER HEAD				M/C ROOM
CAPACTY	WIDTH	DEPTH	WIDTH	DEPTH	OPENING	1 MPS	2 MPS	2.5 MPS	3/4 MPS	1 MPS	2/2.5 MPS	3 MPS	4 MPS	WIDTH	DEPTH
5	1090	880	1725	1350	800	1600	2000	2500	3000	4800	5400	7000	8000	2400	3000
6	1090	1010	1725	1500	800	1600	2000	2500	3000	4800	5400	7000	8000	2400	3000
8	1090	1320	1725	1750	800	1600	2000	2500	3000	4800	5400	7000	8000	3000	3000
10	1190	1475	1750	1900	800	1600	2000	2500	3000	4800	5400	7000	8000	3000	3500
13	1290	1710	1950	2020	900	1600	2000	2500	3000	5400	5400	7000	8000	3000	3500
16	1450	1795	2150	2200	1000	1600	2000	2500	3000	5400	6000	7000	8000	3000	3500
20	1500	2070	2200	2500	1000	1600	2000	2500	3000	5400	6000	7000	8000	3000	3500
22	1550	2185	2400	2600	1100	1600	2000	2500	3000	5400	6000	7000	8000	3000	3500
24	1500	2410	2500	2820	1200	1600	2000	2500	3000	5400	6000	7000	8000	3000	3500
26	1550	2485	2500	2890	1200	1600	2000	2500	3000	5400	6000	7000	8000	3000	3500
29	1700	2460	2600	2900	1200	1600	2000	2500	3000	5400	6000	7000	8000	3000	3500

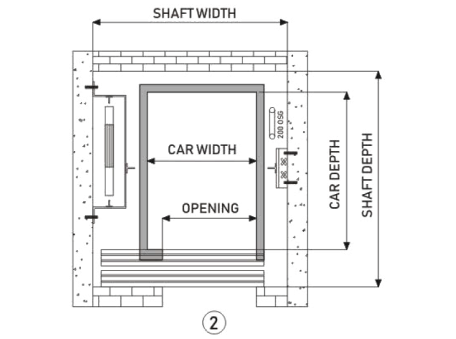

MR Technical Specification Telescoping Opening

CAPACTY	CARSIZE		SHAFT SIZE		OPENING	PIT				OVER HEAD				M/C ROOM
CAPACTY	WIDTH	DEPTH	WIDTH	DEPTH	OPENING	1 MPS	2 MPS	2.5 MPS	3/4 MPS	1 MPS	2/2.5 MPS	3 MPS	4 MPS	WIDTH	DEPTH
5	890	1070	1500	1500	800	1600	2000	2500	3000	5400	5400	7000	8000	2400	3000
6	890	1240	1500	1680	800	1600	2000	2500	3000	5400	5400	7000	8000	2400	3000
8	890	1610	1500	2020	800	1600	2000	2500	3000	5400	5400	7000	8000	3000	3000
10	1190	1475	1800	1900	800	1600	2000	2500	3000	5400	5400	7000	8000	3000	3500
13	1190	1850	1800	2300	900	1600	2000	2500	3000	5400	5400	7000	8000	3000	3500
16	1200	2170	1850	2600	1000	1600	2000	2500	3000	6000	6000	7000	8000	3000	3500
20	1250	2480	1900	2900	1000	1600	2000	2500	3000	6000	6000	7000	8000	3000	3500
22	1350	2510	2150	2910	1100	1600	2000	2500	3000	6000	6000	7000	8000	3000	3500
24	1460	2475	2260	2910	1200	1600	2000	2500	3000	6000	6000	7000	8000	3000	3500
26	1350	2855	2110	3300	1200	1600	2000	2500	3000	6000	6000	7000	8000	3000	3500
29	1610	2600	2410	3030	1200	1600	2000	2500	3000	6000	6000	7000	8000	3000	3500

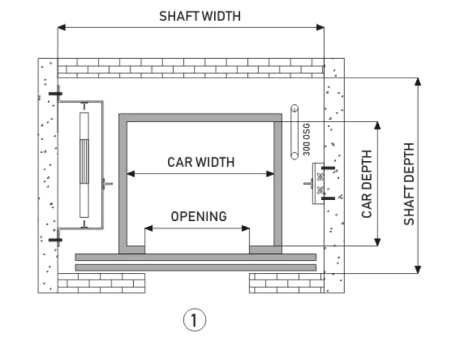

MRL Technical specification center opening

CAPACTY	CARSIZE		SHAFT SIZE		OPENING	PIT		OVER HEAD
CAPACTY	WIDTH	DEPTH	WIDTH	DEPTH	OPENING	1/1.5 MPS	1.75 MPS	1 MPS	1.5 MPS	1.75 MPS
5	1090	880	1725	1350	800	1600	2150	4800	4800	5400
6	1090	1010	1725	1500	800	1600	2150	4800	4800	5400
8	1090	1320	1725	1750	800	1600	2150	4800	4800	5400
10	1190	1475	1750	1900	800	1600	2150	4800	4800	5400
13	1290	1710	1950	2020	900	1600	2150	5400	5400	5400
16	1450	1795	2150	2200	1000	1600	2150	5400	5400	6000
20	1500	2070	2200	2500	1000	1600	2150	5400	5400	6000
22	1550	2185	2400	2600	1100	1600	2150	5400	5400	6000
24	1500	2410	2500	2820	1200	1600	2150	5400	5400	6000
26	1550	2485	2500	2890	1200	1600	2150	5400	5400	6000
29	1700	2460	2600	2900	1200	1600	2150	5400	5400	6000

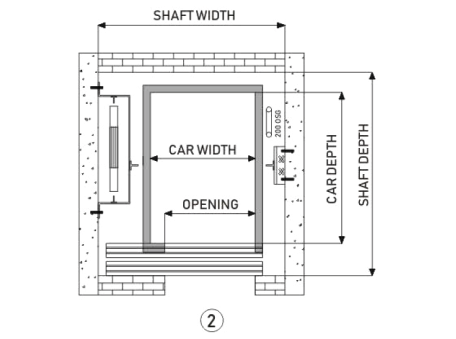

MRL Technical specification telescoping opening

CAPACTY	CARSIZE		SHAFT SIZE		OPENING	PIT		OVER HEAD
CAPACTY	WIDTH	DEPTH	WIDTH	DEPTH	OPENING	1/1.5 MPS	1.75 MPS	1 MPS	1.5 MPS	1.75 MPS
5	890	1070	1500	1500	800	1600	2150	4800	4800	5400
6	890	1240	1500	1680	800	1600	2150	4800	4800	5400
8	890	1610	1500	2020	800	1600	2150	4800	4800	5400
10	1190	1475	1800	1900	800	1600	2150	4800	4800	5400
13	1190	1850	1800	2300	900	1600	2150	5400	5400	5400
16	1200	2170	1850	2600	1000	1600	2150	5400	5400	6000
20	1250	2480	1900	2900	1000	1600	2150	5400	5400	6000
22	1350	2510	2150	2910	1100	1600	2150	5400	5400	6000
24	1460	2475	2260	2910	1200	1600	2150	5400	5400	6000
26	1350	2855	2110	3300	1200	1600	2150	5400	5400	6000
29	1610	2600	2410	3030	1200	1600	2150	5400	5400	6000

Based On

quality in performance

Ride our elevators to elevate your expectations – where efficiency meets comfort, and sustainability ensures a safe, reliable journey every time.

Efficiency

Our advanced elevator systems deliver smooth, fast, and energy-efficient performance, ensuring reliable operation every day.

Comfort

Experience quiet rides, spacious cabins, and seamless travel designed to provide maximum passenger comfort.

Safety

Equipped with advanced safety features, emergency systems, and intelligent controls to ensure complete passenger protection.

Durable

Manufactured using high-quality materials and robust engineering to withstand continuous operation with minimal maintenance.

Service & Maintenance

Elevator safety is paramount whether in industrial, commercial or residential settings. With our timely and professional servicing, you can rest assured.

1. Installation

Trogon’s engineers & technicians are well-trained to provide you with excellent installation support...

Know More

2. Modernization

Upgrade your elevator for an elevated performance. Our precise modernization advances your old...

Know More

3. Replacement

Is your elevator down for repair? We are here to fix it! At Trogon, we provide elevator replacement...

Know More

4. Maintenance

Different projects have different settings and different usage that require different levels of elevator...

Know More
